Description
3M™ Bayonet Particulate Filters are NIOSH-approved and conveniently provide protection against a wide range of dusts, mists and other particulates. They have a bayonet-style connection that fits any 3M™ Bayonet Reusable Respirator offering low breathing resistance and good balance with a slim design.
Versatile and simple to install: 3M™ Bayonet Particulate Filters provide protection against a wide range of dusts, mists and other particles. 3M™ Particulate Filters 2000 Series and 2200 Series provide low breathing resistance and good balance with a slim design. They are flame resistant and easy to install. Simply choose the filter type that’s suitable for your individual needs and requirements, align the connection and twist to lock into place with a quarter turn. 3M™ Particulate Filters 2000 Series, 2200 Series and 7000 Series are compatible with 3M™ 6000 Series Half Facepieces, 6500/6500QL Series, 7500 Series, 6000 Series Full Facepieces, FF-400 Series, 7800 Series and 3M™ Scott™ AV-3000 HT and AV-3000 SureSeal Facepieces with AV-632 Bayonet Adapter, thus helping to reduce inventory needs. 3M™ Particulate Filters 7000 Series are encased in hard plastic cases to help protect them from damage, dirt, decontamination spray showers, debris, sparks and high temperatures. Help protect your workforce: 3M offers a free online tool to help you select the appropriate respirators, cartridges, and filters for your workplace respiratory hazards and contaminants and help determine cartridge change-out schedules. 3M Select and Service Life Software (www.3M.com/sls) contains more than 700 different chemicals and provides documentation of your choices. 3M™ Bayonet Particulate Filters are NIOSH-approved and are designed to help filter a broad range of oil and non-oil based airborne particulate contaminants when used with half and full facepieces, and certain 3M™ Scott™ Full Facepieces. These filters help provide respiratory protection from particulate contaminant concentrations up to 10 times the OSHA Permissible Exposure Limit (PEL) with half facepieces and up to 50 times the OSHA PEL with quantitatively fit tested full facepieces. Some models include nuisance level organic vapor and/or acid gas relief. Not for use in environments that are immediately dangerous to life or health (IDLH) or contain hazardous levels of organic vapors and/or acid gases (except hydrogen fluoride on certain models). Change 3M™ Bayonet Particulate Filters when they become dirty, damaged, or difficult to breathe through.
- NIOSH-approved for environments containing certain oil and non-oil based particles
- Bayonet-style connection fits a wide range of compatible half and full facepiece 3M™ Reusable Respirators
- Use with NIOSH-approved 3M™ Half and Full Facepiece Reusable Respirator 6000, 6500, 7500, 7800S or FF-400 Series; or the 3M™ Scott™ AV-3000 SureSeal or AV-3000 HT
- Filters can help reduce inhalation exposures to certain airborne biological particles
- Advanced Electret Media (AEM) is designed to provide lightweight, easy breathing comfort

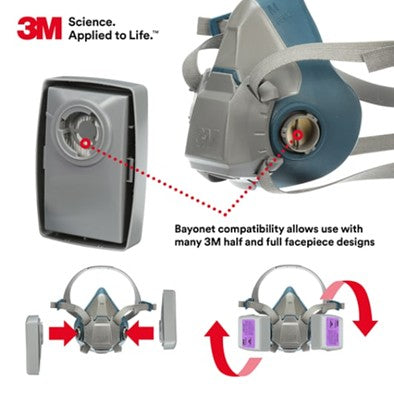

- Quarter turn twist for a quick and easy installation
- Flame resistant
- Use for protection in hazardous environments. For workplace/occupational use only
Specifications
Aerosol Type
Oil & Non-oil
Brand
3M™
Cartridge or Filter Rating
P100
Cartridge or Filter Type
Particulate

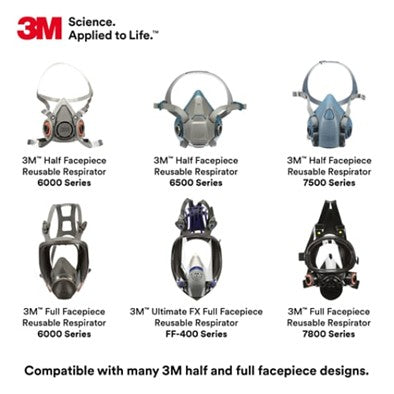

Compatible Respirator
3M™ Rugged Comfort Half Facepiece 6500 Series
3M™ Half Facepiece 7500 Series
3M™ Scott™ AV-3000 HT Full Facepiece
3M™ Half Facepiece 6000 Series
3M™ Full Facepiece 6000 Series
3M™ Full Facepiece 7800S Series
3M™ Full Facepiece FF-400 Series
3M™ Scott™ AV-3000 SureSeal Full Facepiece
Connection Type
Bayonet
Enhanced Durability
Yes
Features
Enhanced Field of View
Spring-loaded Filter Cover
Filter Class
P100
Filter Material
Glass Fiber Paper
For Use With
Reusable Respirators
NIOSH Cartridge or Filter Assigned Color Coding
Magenta
NIOSH Filter Approval Rating
P100
Nuisance Odor Relief (< OSHA PEL)
N/A
Occupational Exposure Limit
Asbestos 10
Asbestos 50
Silica 10
Silica 50
Manganese 10
Manganese 50
Overall Height (Imperial)
2.3 in
Overall Length (Imperial)
3.4 in
Particulate Protection
Silica
Asbestos
Mold
Product Code
7093
Product Series
7500
7800S
6000
FF-400
6500
7000
5000
Product Type
Filter
Purpose
Cartridges & Filters
Recommended Application
Arsenic
Asbestos
Assembly & Mechanical
Batch-charging
Welding
Brazing
Pouring/Casting
Primary Metal
Remediation
Sanding
Wood Processing
Clean-up
Finishing Operations
Grinding
Handling
Cadmium
Maintenance
Manufacturing
Torch Cutting
Metal Pouring Including Exposure to Lead
Soldering
MDA
Recommended Industry
Oil & Gas
Transportation
Mining
Food Safety
Construction
General Manufacturing
Metal Production & Fabrication
Facility Sanitation
Heavy Infrastructure
Food Processing
Design & Construction
Industrial Maintenance
Shelf Life
60 Months
Specifications Met
P100
NIOSH Approved
