Description

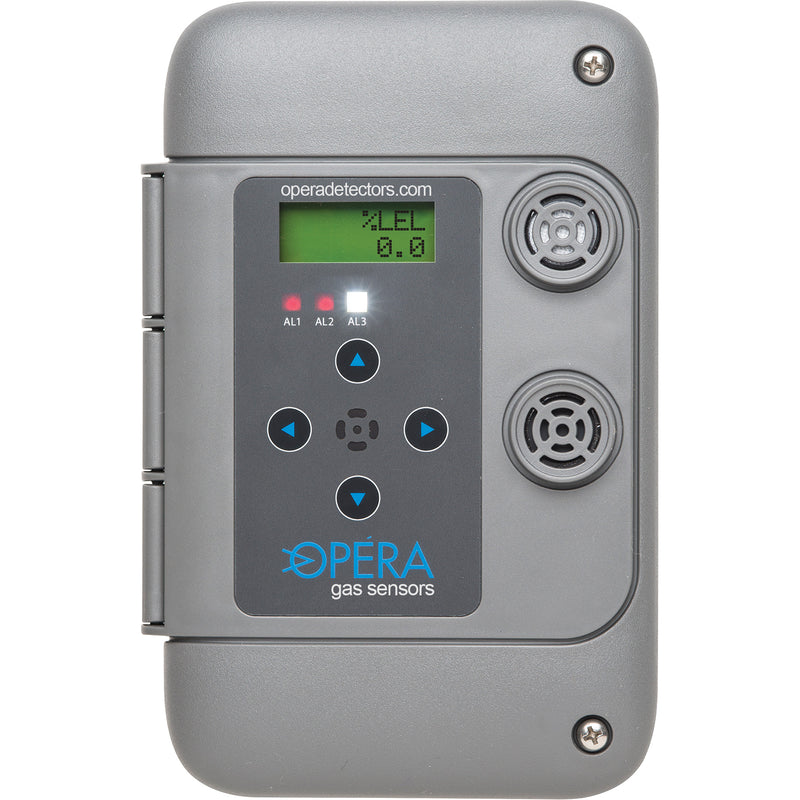

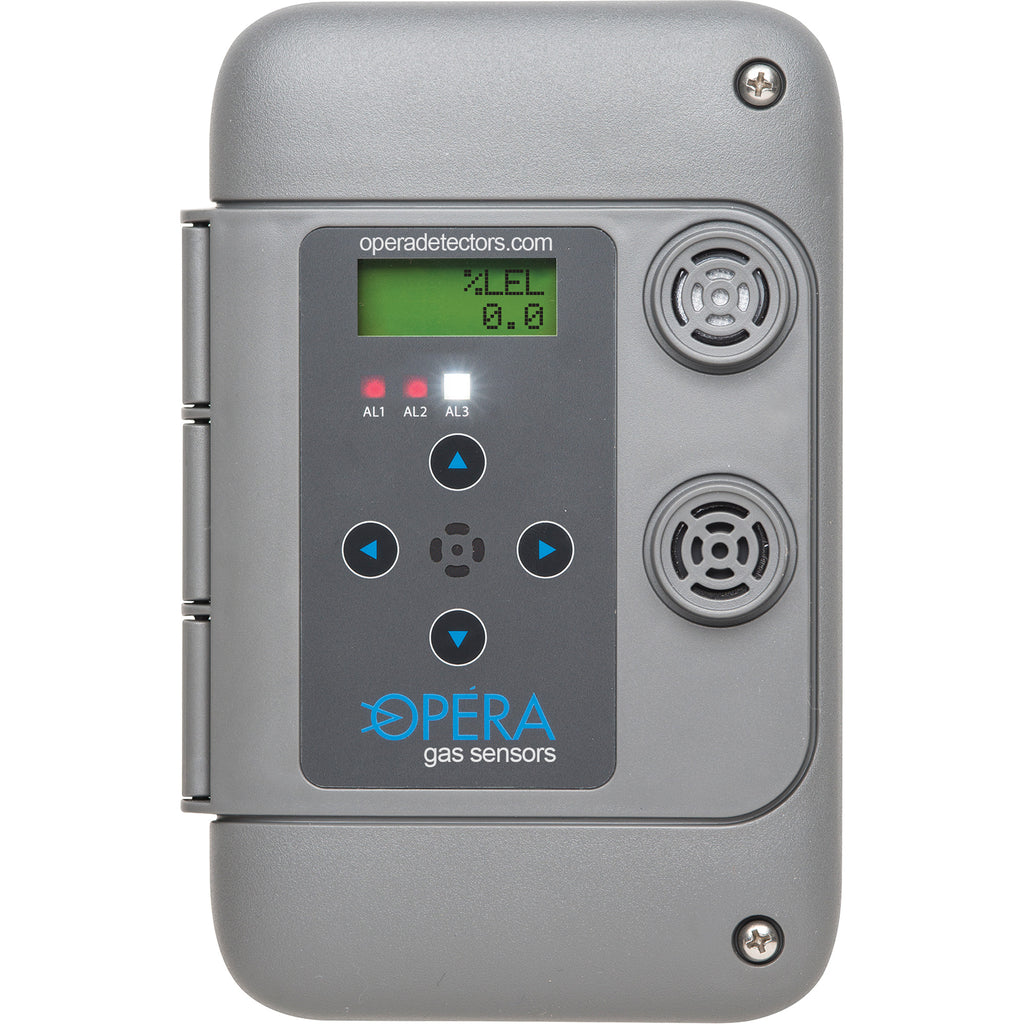

The Opera 22G08-5A Hydrogen Controller is a centralized unit for the 5000 & 6000 Series gas sensors, supporting up to 31 remote sensors via twisted pair cable. It features a digital display, audible alarm, red LED indicators, and a high-intensity strobe for clear hydrogen alerts. BACnet-compatible and BTL certified, it offers 1 adjustable relay, binary input, and analog outputs (4-20 mA / 2-10 V), with time-based ventilation control for industrial safety systems.
- A central control panel to operate ventilation components and remote alarms for 5000 or 6000 series sensors using a twisted pair cable network
- Features 1 adjustable alarm relay, audible alarm, red LED indicators, and high intensity LED strobe indicator
- Interfaces to BACnet building automation systems (BTL Certified)
- Supports up to 31 remote gas sensors on twisted pair chain network
- Unlimited sensor zone groupings
- Time-based cycle ventilation controls
- Binary input for external inputs and interlocks
Specifications
Display Type
Digital
Alert Type
Light, Sound & Display
Operating Temperature
-20°C to 50°C (-4°F to 122°F)
No. Of Relays
1
Relay Type
SPDT 5 Amp @ 125 VAC
No. Of Analogue Outputs
1
Analogue Output
4-20 mA / 2-10 V
Range
0 - 50% LEL
Power Requirement
24 VAC 50/60 Hz (17-28 VAC) 0.21 Amps, 5 VA
