Description
3M™ Bayonet Gas & Vapour Cartridges with Particulate Filters are NIOSH-approved and conveniently provide protection against a wide range of gases, vapours and particulates depending on the model selected. They have a bayonet-style connection that fits any 3M™ Bayonet Reusable Respirator and they’re designed to optimize your field of vision. These cartridges offer lightweight breathing protection for a wide range of hazardous environments.

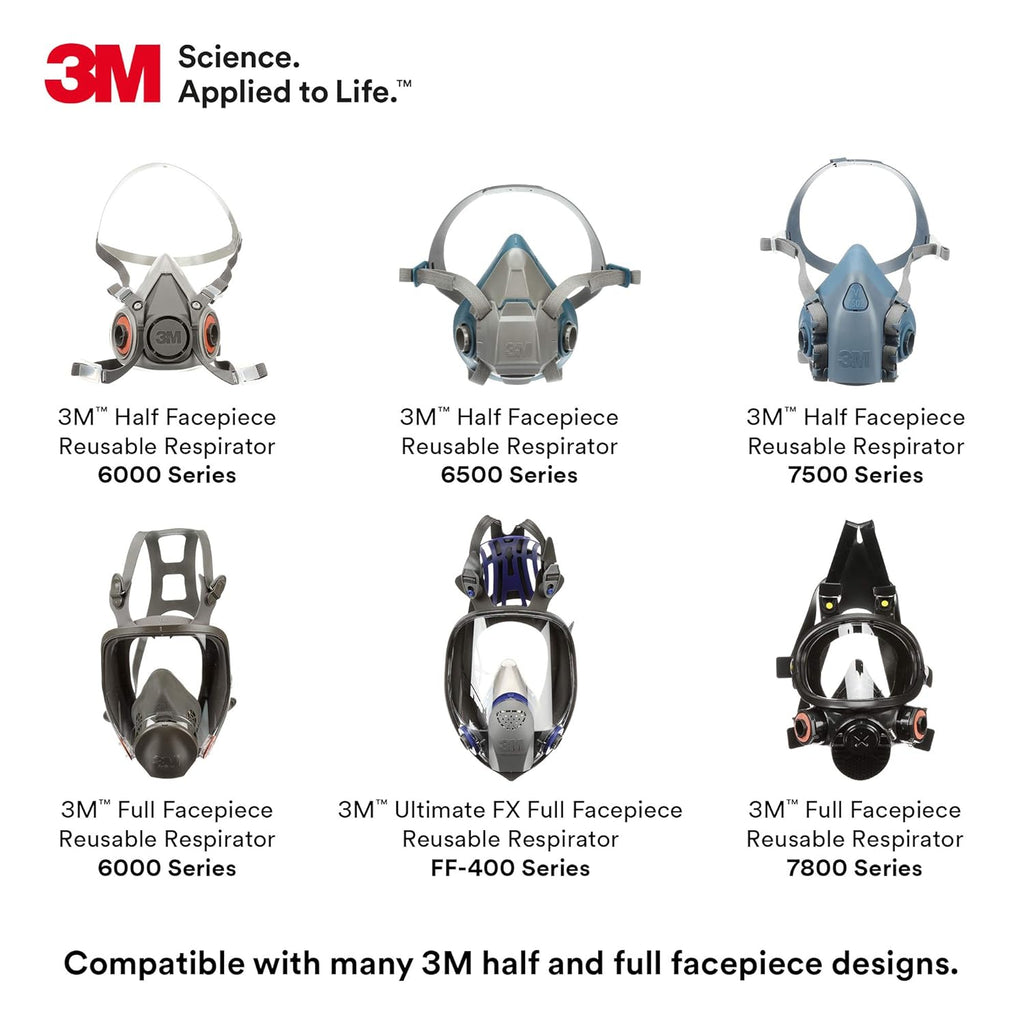

Versatile and simple to install: designed to enhance field of view and comfort on the job, these gas & vapour cartridges with particulate filters feature a low-profile, swept-back design. 3M™ Bayonet Gas & Vapour Cartridges with Particulate Filters are easy to install. Simply choose the cartridge type that’s suitable for your individual needs and requirements, align the connection and twist to lock into place with a quarter turn. These cartridges are compatible with 3M™ 6000 Series Half Facepieces, 6500/6500QL Series, 7500 Series, 6000 Series Full Facepieces, FF-400 Series, 7800 Series, 3M™ Scott™ AV-3000 HT and AV-3000 SureSeal Facepieces with AV-632 Bayonet Adapter, thus helping to reduce inventory needs. Easy breathing: 3M™ Bayonet Gas & Vapour Cartridges with Particulate Filters are designed to balance breathability and long service life. Gas and vapour cartridges use carbon particles to adsorb contaminants, filtering the air that you breathe. 3M™ has designed the cartridges to be easy to breathe through and long lasting by optimizing the layers and depth of the carbon bed, geometry of the cartridge body, and carbon particle size. 3M™ Bayonet Gas & Vapour Cartridges with Particulate Filters provide protection against a wide range of gases, vapours and particulates. Designed for use in multiple industrial applications. Help protect your workforce: 3M offers a free online tool to help you select the appropriate respirators, cartridges, and filters for your workplace respiratory hazards and contaminants and help determine cartridge change-out schedules. 3M Select and Service Life Software (www.3M.com/sls) contains more than 700 different chemicals and provides documentation of your choices. 3M™ Bayonet Gas & Vapour Cartridges with Particulate Filters are NIOSH-approved to protect against particulates and help provide respiratory protection from certain gas or vapour concentrations up to 10 times the OSHA Permissible Exposure Limit (PEL) with half facepieces and up to 50 times the OSHA PEL with quantitatively fit tested full facepieces. Not for use in environments that are immediately dangerous to life or health (IDLH). Change 3M™ Bayonet Gas & Vapour Cartridges with Particulate Filters in accordance with your well-documented change-out schedule or earlier if smell, taste or irritation from contaminants is detected.
- NIOSH-approved for use against a range of gases, vapours and particulates depending upon the model selected
- Bayonet-style connection fits a wide range of compatible half and full facepiece 3M™ Reusable Respirators
- Use with NIOSH-approved 3M™ Half and Full Facepiece Reusable Respirator 6000, 6500, 7500, 7800S or FF-400 Series; or the 3M™ Scott™ AV-3000 SureSeal or AV-3000 HT
- Swept-back, low profile design for optimized field of view and balance
- Lightweight with low breathing resistance
- Quarter turn for a quick and easy installation
- Wide range of applications may reduce inventory needs
- Use for protection in hazardous environments. For workplace/occupational use only
Specifications
Aerosol Type
Oil & Non-oil
Brand
3M™
Cartridge or Filter Rating
P100
Cartridge or Filter Type
Vapor
Particulate
Multi-gas
Compatible Respirator
3M™ Rugged Comfort Half Facepiece 6500 Series
3M™ Half Facepiece 7500 Series
3M™ Scott™ AV-3000 HT Full Facepiece
3M™ Full Facepiece 6000 Series
3M™ Full Facepiece 7800S Series
3M™ Full Facepiece FF-400 Series
3M™ Half Facepiece 6000 Series
3M™ Scott™ AV-3000 SureSeal Full Facepiece
Connection Type
Bayonet
Features
Particulate Filter Permanently Attached to Cartridge
Filter Class
P100
Filter Material
Glass Fiber Paper
For Use With
Reusable Respirators
Gas & Vapor Protection Type
Certain Organic Vapors
Sulfur Dioxide
Hydrogen Chloride
Chlorine
Chlorine Dioxide
Hydrogen Fluoride
Hydrogen Sulfide
Ammonia
Methylamine
Formaldehyde
NIOSH Cartridge or Filter Assigned Color Coding
Magenta/Olive
NIOSH Filter Approval Rating
P100
Occupational Exposure Limit
Silica 50
Manganese 10
Silica 10
Asbestos 10
Manganese 50
Asbestos 50
Overall Height (Imperial)
3.4 in
Overall Length (Imperial)
4.2 in
Particulate Protection
Asbestos
Formaldehyde
Methylamine
Mold
Organic Vapor
Silica
Ammonia
Product Code
60926
Product Series
6000
FF-400
7500
7800S
Rugged Comfort 6500
7000
Product Type
Filter & Cartridge Combo
Purpose
Cartridges & Filters
Recommended Application
Paint Preparation
Composite Finishing
Final Finish
Cleaning
Pouring Molten Metal
Hazardous Waste Handling
Batch-charging
Handling
Laboratories
Maintenance
Manufacturing
Painting
Parts Cleaning
Seal Coatings
Petrochemical
Grinding
Powder Charging
Powder Coating
Remediation
Pharmaceuticals
Welding
Pesticide Application
Spray Coating
Working in Dusty & Poisonous Atmosphere
Torch Cutting
Spray Painting
Recommended Industry
Food Safety
Construction
Metal Production & Fabrication
Design & Construction
Transportation
Food Processing
Facility Sanitation
Industrial Maintenance
Marine
General Manufacturing
Mining
Oil & Gas
Heavy Infrastructure
Pharmaceutical
Heavy Industrial
Series Type
3M™ 6000 Series
Shelf Life
60 Months
Specifications Met
P100
NIOSH Approved
